Teleco presents

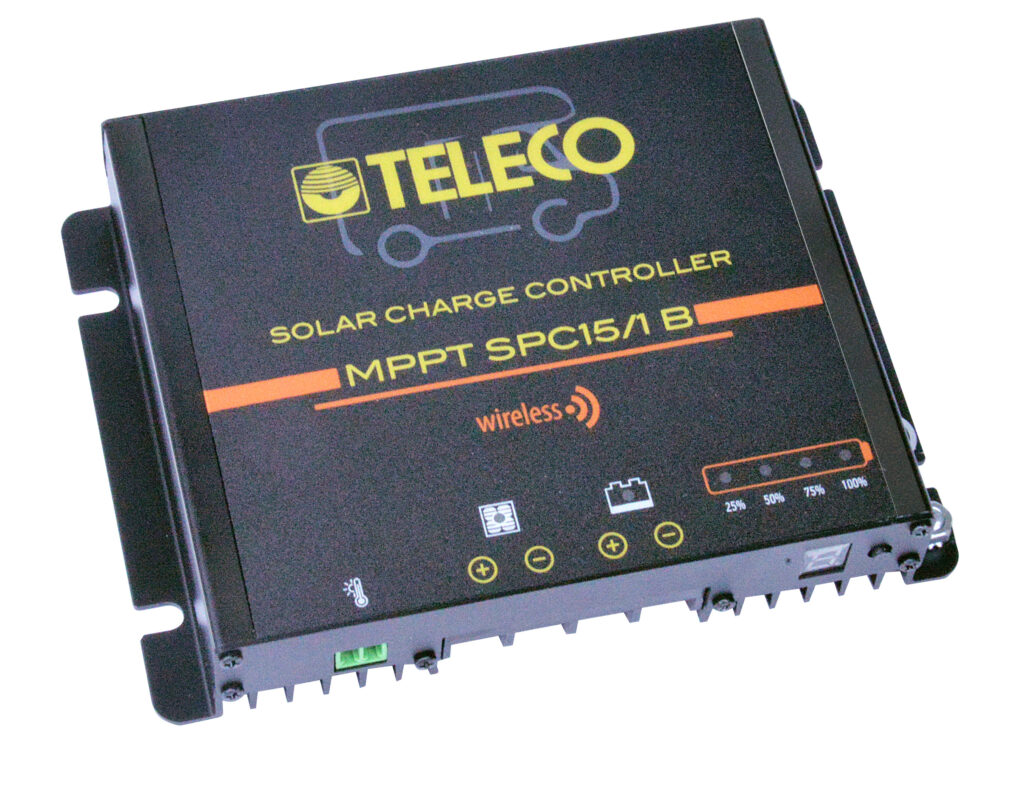

Teleco presents SPC 15/1 B: the 15A MPPT controller with integrated Bluetooth

TELECO expands its range of solar charge controllers with the introduction of the new SPC 15/1 B, an evolution of the SPC 15/1 model now equipped with an integrated Bluetooth connection. Compact, powerful and compatible with all Teleco solar panels, this new device is an ideal solution for maximising the efficiency of photovoltaic systems on campers.

The SPC 15/1 B controller uses advanced MPPT (Max Power Point Tracking) technology, which allows it to dynamically track the maximum power point of the solar panel, significantly increasing conversion efficiency compared to traditional PWM controllers. With a maximum charging current of 15A and an input power of up to 200W, it is perfectly compatible with the TSP, TBS, TBCF, TBSF (Flexible) panels of the Teleco range.

Base specifications:
• MPPT technology with very high tracking efficiency (>99.9%) and conversion efficiency (up to 98%)
• Compatible with AGM, GEL, liquid lead-acid and lithium batteries
• Integrated Bluetooth connection, compatible with the Teleco app for real-time viewing of energy data
• Integrated LCD display for easy and immediate control of system parameters
• Real-time energy statistics and 4-step charging (MPPT, boost, equalisation, float)
• Built-in electronic protections: overcurrent, short circuit, reverse connection, open circuit
• Remote temperature sensor to optimise battery life
• Different load control modes (always on, streetlight mode, custom mode)

A plus offered by the new SPC 15/1 B is the possibility of controlling it directly from your smartphone thanks to the integrated Bluetooth connection and the Teleco app, available free of charge from all digital stores. The app allows you to view the status of your photovoltaic system in real time: the energy input from the panel, the energy storage in the battery, and all the main operating parameters. It’s a simple yet powerful tool to have control over your camper or caravan system at all times, with clear graphics that are accessible even to less experienced users.
But the Teleco app is not limited to the controller: it is also designed to manage FlatSat, Telesat and ActivSat satellite antennas, ensuring their precision updating and orienting thanks to integrated tools such as the compass feature and automatic calculation of the LNB SKEW angle.
For users of the TLI Premium battery, the app allows its charge level to be monitored precisely. All this with an intuitive interface, which works via Bluetooth at close range.

The Teleco controller range now includes four models: SPC15/1, SPC15/1 B, SPC20/1 B, SPC30/1 B, offering a full selection for any power requirement and photovoltaic system configuration.

Specifications

• System voltage: 12V
• Maximum charge current: 15 A
• Charging technology: 4-phase MPPT (MPPT – Boost – Equalisation – Float)
• Compatible batteries: Gel, AGM, Liquid, Lithium
• Maximum PV input voltage: 55 V (*)
• Maximum input power: 200W
• Tracking efficiency: >99.9 %
• Maximum conversion efficiency: 97.5%
• Built-in Bluetooth
• Load operating modes: Always on / Streetlight / Custom
• Self-consumption: 0.2W
• Power terminals: 8 AWG (10 mm²)
• Dimensions: 189 x 96 x 53 mm
• Weight: 420 g
• Operating temperature: -20 °C / +55 °C
